6' DIA X 8' W Hydraulic Boom Reel

Name: 6' DIA X 8' W Hydraulic Boom Reel
Brand: Aer-Flo Environmental
SKU: BOOMREEL68
Availability: InStock

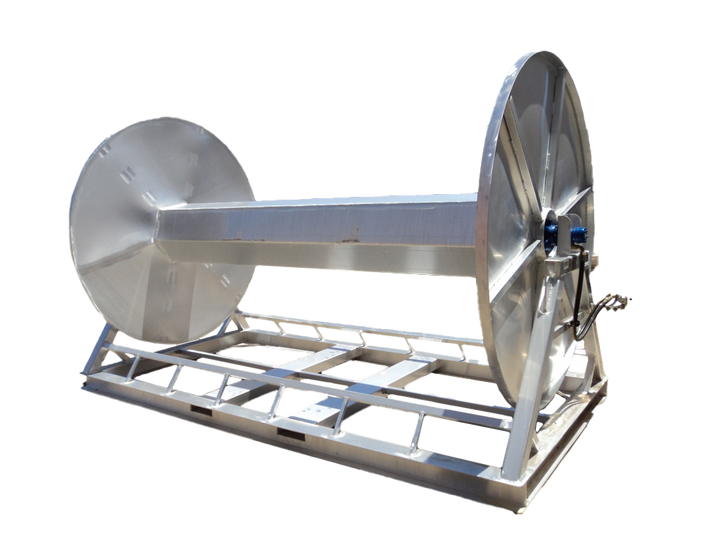

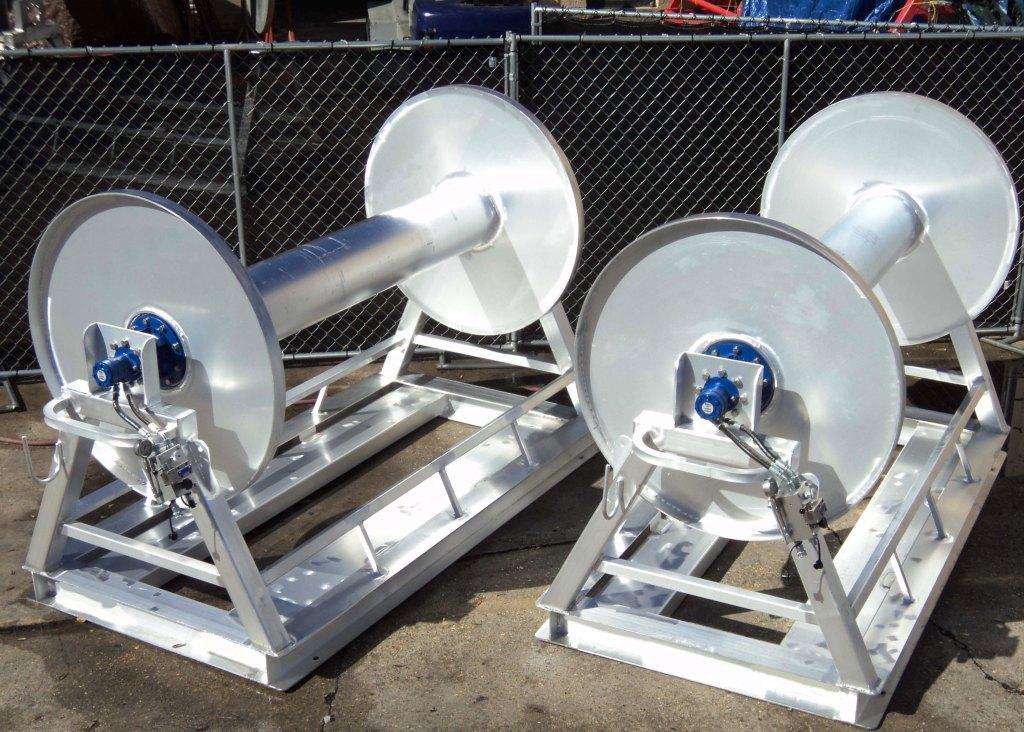

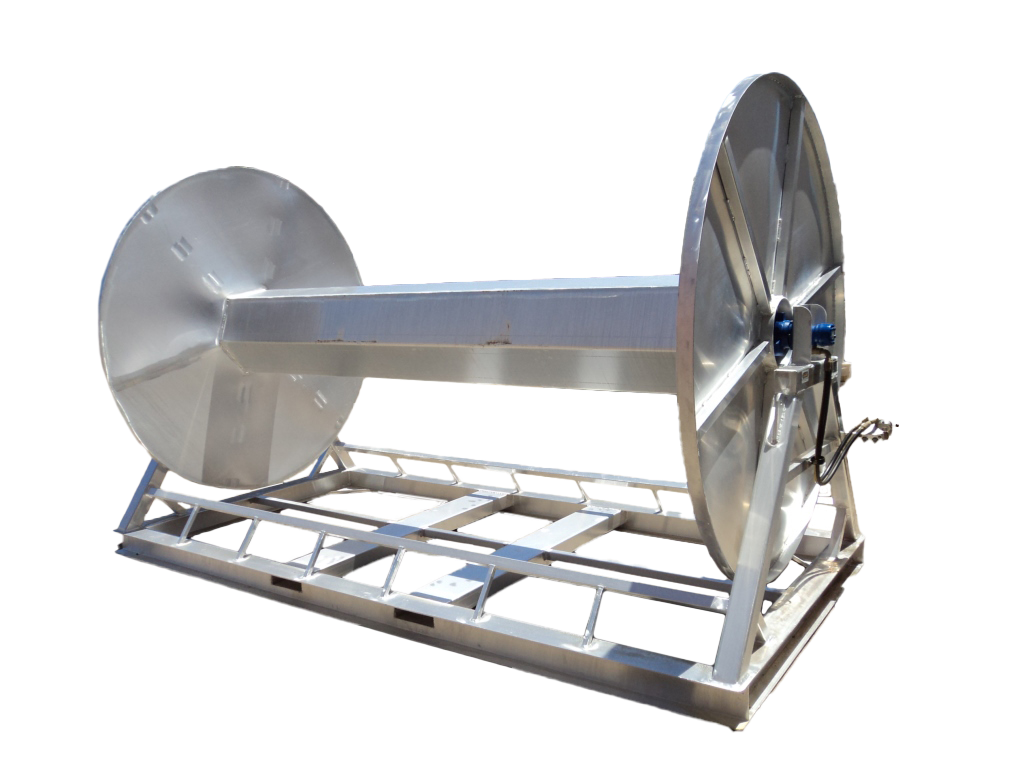

This 6’ x 8’ boom reel provides an efficient and reliable solution for long-term storage and rapid deployment of oil spill containment booms. Built from marine-grade aluminum with a rugged steel frame, the reel is engineered for strength, corrosion resistance, and dependable performance in harsh marine environments. Available in skid-mounted, trailer-mounted, or containerized configurations, Boom Reels offer hydraulic or electro-hydraulic operation for effortless control and versatility in the field.

Size

6' DIA X 8' WIDE

Type

HYDRAULIC

Request A Quote

This 6’ x 8’ boom reel is designed for professional oil spill response and environmental containment operations, providing rapid deployment and compact storage for various containment boom sizes and styles. Each reel features a marine-grade aluminum alloy spool and base mounted on a heavy-duty steel skid or frame for maximum durability and corrosion resistance in saltwater or industrial conditions. The hydraulic drive system accepts power from any open-circuit hydraulic source (minimum 6 GPM @ 2500 PSI) and offers smooth, variable-speed control for both payout and retrieval. A clearly labeled control block provides intuitive operation with functions for reel direction, speed adjustment, and manual bypass, allowing the reel to be turned manually when hydraulic power is unavailable. Additional features include a pressure gauge, safety relief valve, and hydraulic brake for controlled, safe operation during deployment and recovery.

Boom Reels are available in multiple configurations—including skid-mounted, trailer-mounted, or containerized units—and can be customized to match boom length, diameter, and deployment method. Options include diesel hydraulic or electro-hydraulic drives, quick-connect fittings, and integrated control panels for standalone or system-based operation. Engineered to handle heavy boom loads and built to withstand continuous field use, Boom Reels deliver consistent, high-performance operation when response time matters most.

Dry Weight (empty): 750 lbs.
Hydraulic Power Unti: 380 lbs.
Spool: 6' diameter by 8' wide
Dimensions: 9.5' x 6' x 6.8' High
Construction Material: Marine grade aluminum
Hydraulic requirement: 6 gpm @ 2500 (max) PSI
Hydraulic lines: 1/2" Single Wire (3250 PSI Rating)
Hydraulic Components
A) Directional Valve
B) Flow Control
C) Hydraulic Motor
D) Gear Reducer
E) Counter Balance Valves
F) Bypass Valve
Reel Spool –5 diameter, 8’ wide (between side plates)
Reel Spool Bearings – 3” Pillow Block
Gear Reducer – Auburn Wheel Drive, Model 6WA16B190P
Hydraulic Motor – Danfoss, Model 15123114 7.6CIR
Hydraulic Lines –1/2” pressure and return
Hydraulic Quick Connectors – Aeroquip 5600 Series, male & female with caps & plugs, size 8-10S
